K17980 Corrosion Preventive Properties Apparatus

Test Method

Determines the corrosion preventive properties of greases when distributed in a tapered roller bearing stored under wet conditions.

Features and Benefits

• Conforms to ASTM D1743, D4950 and D5969 specifications

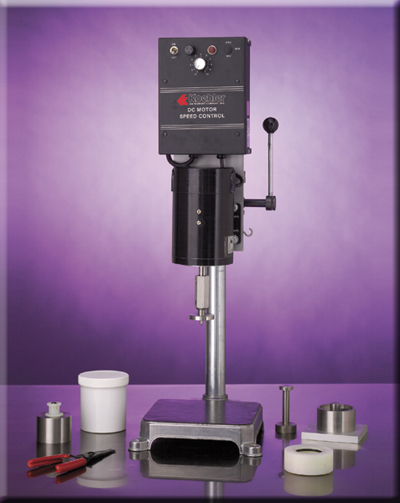

K17980 Corrosion Preventive Properties Apparatus

Distributes a lubricating grease sample in a roller bearing by running the bearing under light thrust load. Corrosion preventive capability is determined on a pass/fail basis by the presence of rust spots (1mm or larger) on the bearing race after a 60 second run-in period followed by prolonged exposure to water at constant temperature. Consists of variable speed motor, 1750rpm run-in stand, bearing holder assemblies, spindle/thrust loading device, mechanical grease packer pliers and test bearings.

Specifications

Conforms to the specifications of: ASTM D1743, D4950, D5969 Draft Method
Drive Motor: 1750rpm

Electrical Requirements

115V 50/60Hz, Single Phase, 2.0A
220-240V 50/60Hz. Single Phase, 1.0A

Included Accessories

Spindle/Thrust Loading Device
Mechanical Grease Packer
Pliers
Test Bearings (3) (cone and roller assemblies)
Bearing Holder Assemblies (3), consisting of:
1kg weight
upper and lower plastic collars for cone
plastic collar for cup
plastic jar with screw cap
metal screw

Dimensions lxwxh,in.(cm)

10x15x20 (25.4×38.1×50.8)
Net Weight: 27 lbs (12.2kg)

Shipping Information

Shipping Weight: 36 lbs (16.3kg)
Dimensions: 5 Cu. ft.
